EZ-FLASHER Production Information Site
!! ALERT !!
AN EZ-FLASHER CUSTOMER HAS REPORTED THEIR UNIT STOLEN.
PLEASE REPORT ANYONE TRYING TO SELL S/N:EZ110.


AN EZ-FLASHER CUSTOMER HAS REPORTED THEIR UNIT STOLEN.
PLEASE REPORT ANYONE TRYING TO SELL S/N:EZ026.


EVERY UNIT SHOULD HAVE AN ADHESIVE LABEL WITH SERIAL NUMBER PLACED ON THE SIDE
COVERING BOTH TOP AND BOTTOM PARTS. IF THIS LABEL IS MISSING, PLEASE LET US KNOW.

THANK YOU FOR YOUR INTEREST IN THE EZ-FLASHER!

Although not shown on all versions of the sign-on screen,
Laser Key Products was instrumental in the EZ Flasher development.

LAST UPDATED: 01/18/17 Chrysler PIN code • Honda Immobilizer • Isuzu PIN code • Lexus ECU's & ICU's • Toyota ECU's & ICU's • VW PIN code

twinkle Please click on the version number on the left for more detailed information.


Latest ADDITIONS...

Tutorials Section has been added

Operation Manual added
v1.6, 24MB
DELCO Manual added (option)

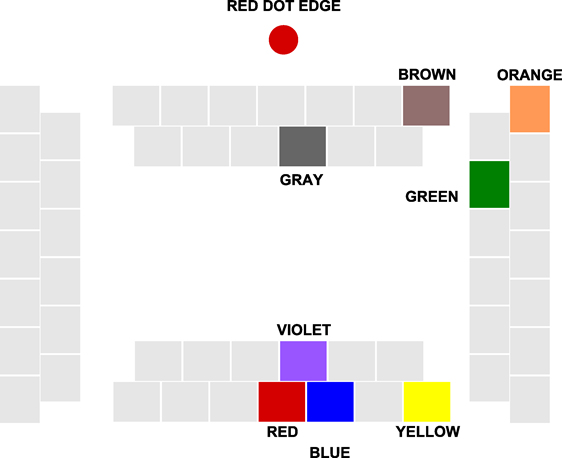

ADDED CLIP IMAGE TO DOCUMENT
(CLICK HERE TO VIEW IMAGE)

delcoclip
v1a, 7.8MB
Additional Optional Manuals Below

Where To Purchase
LLS Sales
1-866-963-KEYS
AE Tools & Computers
913-856-6678


For technical support you must contact the place of purchase.
Sorry, but this site is for manufacturing information only!


Revision Information

Thank you for visiting the EZ-FLASHER re-flash tool information site. This site allows you to track the updates made to the EZ-FLASHER programmer.

Please visit the Contact page if you require information other than support. Thank you.


EZgOperation

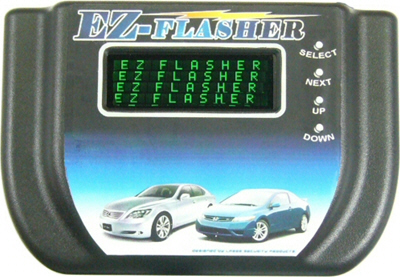

The EZ-FLASHER will program ECU's & Immobilizer ICU's for Honda, Lexus & Toyota automobiles. It can also read the PIN code on certain Isuzu models. No laptop or desktop computer is required.

The EZ-FLASHER is self-contained and plugs into a typical cigarette lighter. Updates are made through purchased SD memory cards.


SUPPORTED MANUFACTURERS/MODELS

CHRYSLER: PIN Read & Change
(WITH UPGRADE)
SKREEM
TYPE 1 SKIM
Pacifica 04+
Jeep Liberty 05+
Caravan/Voyager

SUPPORT:
E Z Flasher manual update, Chrysler Skreem PIN read (Rough Draft) PDF download.
E Z Flasher manual update, Chrysler type 1 PIN read (Rough Draft) PDF download.


HONDA ICU:
Prelude
Acura RL
Acura NSX
Reverse decode
for cloner
(WITH UPGRADE)

ISUZU PIN code:
(WITH UPGRADE)
Axiom 6Cyl
Rodeo 6Cyl

LEXUS ECU's & ICU's:
ES300
ES330
GS300
GS400
GS430
GX470
IS300
LS400
LS430
LX470
RX300
RX330
RX400
SC300
SC400
SC430

TOYOTA ECU's & ICU's:
4Runner
Avalon
Camry
Corolla
Highlander
Land Cruiser
Matrix
MR2
Prius
Sienna
RAV4
Sequoia
Solara
Tacoma

VW PIN code:
(WITH UPGRADE)
Euro Van 01-04
Cabrio(Valeo) 00-02

SUPPORT:
EZ Flasher manual update, VW (Valeo) Immo box (Rough Draft) PDF download


VERSION DESCRIPTIONS
VERSION 1.06
  • Released in Production Build
VERSION 1.07
  • Released in Production Build
  • Fixed Honda programming issue
VERSION 1.08 - 1.10
  • Internal code change
VERSION 1.11
  • Released in Production Build
  • Added SD-CARD update feature.
VERSION 1.12
  • Notice only.

Required pulling off the wire on Pin 6 when programming an 93C66A on units with serial numbers greater than 050. This signal is not needed for programming any 93CXX part in a module.

VERSION 1.13
  • Added DELCO ECU programming feature for Toyota.
  • Fixed a bug for repairing a failed update procedure.
  • Available as update
VERSION 1.14
  • Internal code change

VERSION 1.15
  • Released in Production Build
  • Fixes PRIUS programming error
VERSION 1.16
  • Released in Production Build
  • Internal code change
VERSION 1.17
  • Fixed AVALON (IC2) menu entry
  • Fixed Sequoia 'retry' lockup
    1.17a:
  • Fixed DELCO programming
    1.17d:
  • Increased programming speed (8X) on most ECU's.
  • Added SN display in config menu.
    1.17e:
  • Pesky C56 programming fixed.
    (i.e., '02 Lexus ES300)
    1.17f:
  • It was supposed to fixed - this should be the final fix. All previous versions will fail to program some Honda/ Acura immobilizers units.
    Fixes 16bit vs 32bit IC900 boxes, and
    greatly improves programming speed.
VERSION 1.18

 CURRENT RELEASE BELOW

    1.18a:
  • Faulty feedback continued the IC900 programming error. It really is fixed this time. Appologies to our customers on this long awaited fix.

P U R C H A S E D U P D A T E S
Available as a purchased upgrade.

VERSION 1.32
    1.32a Enhancements:
  • Isuzu PIN read
  • VW PIN Read
  • Chrysler PIN READ
    (SKIM & SKREEM)
  • Honda reverse decode key
VERSION 1.33
    1.33a Enhancements:
  • Added '04 Caravan
  • Fixed Chrysler Type 1 PIN display (was reversed).
  • Fixed IC mode problem when switching between serial ROMs.

  • 1.33b Enhancements:
  • Pacifica programming corrected.
  • SKIM 1: Can RESET LOCKOUT if too many attempts made.
    1.33c Enhancements:
  • Fixed DELCO programming problem.
    1.33d Enhancements:
  • Added SN display in config menu.
    1.33e Enhancements:
  • Increased programming speed (8X) on most ECU's.
    1.33f Enhancements:
  • Pesky C56 programming fixed.
    (i.e. Sequoia 01-02)
VERSION 1.34
    1.34a Enhancements:
  • Fixes 16bit vs 32bit IC900 boxes, and
    greatly improves programming speed.

    1.34b Enhancements:

  • Fixes Isuzu READ operation. Power was not applied to IC.
    1.34c Enhancements:
  • Changed copyright year.
  • Internal changes.
VERSION 1.35
    1.35a Enhancements:
  • Faulty feedback continued the IC900 programming error. It really is fixed this time. Appologies to our customers on this long awaited fix.

 CURRENT RELEASE BELOW

    1.35b Enhancements:

  • Time out flag wasn't cleared properly.

UPDATES INCLUDE ALL PREVIOUS UPDATES - UPGRADES MAY NOT


GOOD TO KNOW STUFF

This content is gathered from feedback from users like you or from user questions.

1-03-17

For upgrade versions only: If constant "Data Is Questionable" errors, try power cycling the unit. This has been fixed in 1.35b.

8-11-16

The numbers after an ERROR can indicate a bad connection or the board itself is interfering with programming.

The numbers actually indicate the number of bad compares from what is in the chip to what should be progammed. They van range from a low number to 255. A value of 255 indicates not a single byte was programmed.

If running into constant programming errors, try grounding the crystal closest to Pin 1 of the memory IC IC900. This is indicated by the error number changing.

Error: "Time Out" indicates a very poor connection.
